About This

• SUBMERSIBLE DEEP WELL PUMP: 3.9-inch diameter well pump fits 4-inch diameter driven wells or larger; NSF/ANSI 372 certified for potable water

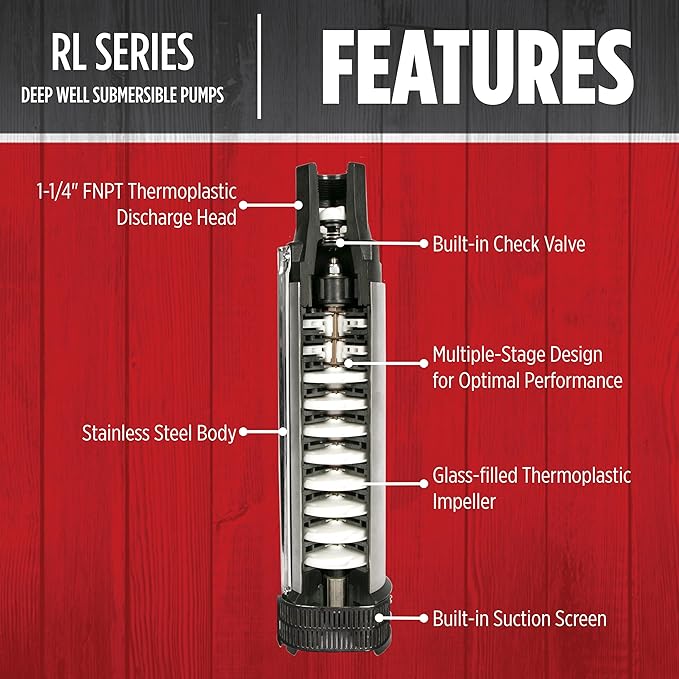

• BUILT-INS: built-in check valve help keep pump from rapid cycling and extends the motor life; built-in suction screen helps keep debris out protecting the impellers

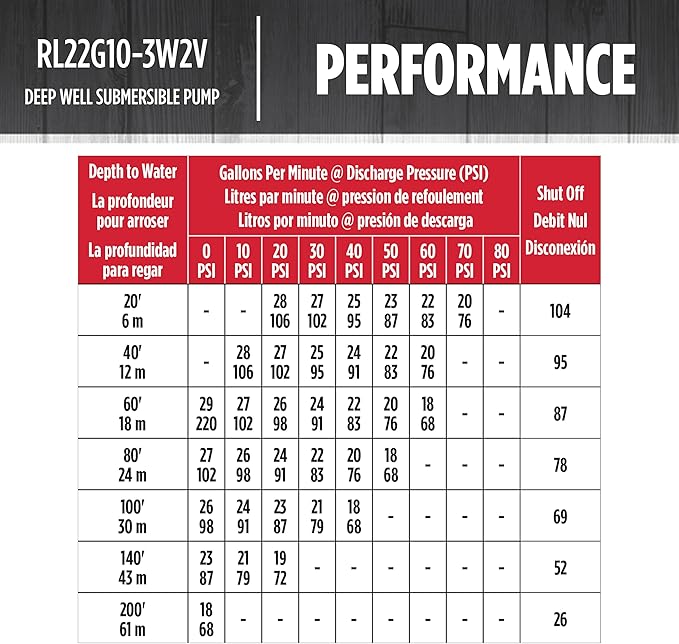

• RATED FOR 22 GPM: at 30 PSI it can deliver 22 GPM at a depth of 80-ft.; 260-ft. shut-off

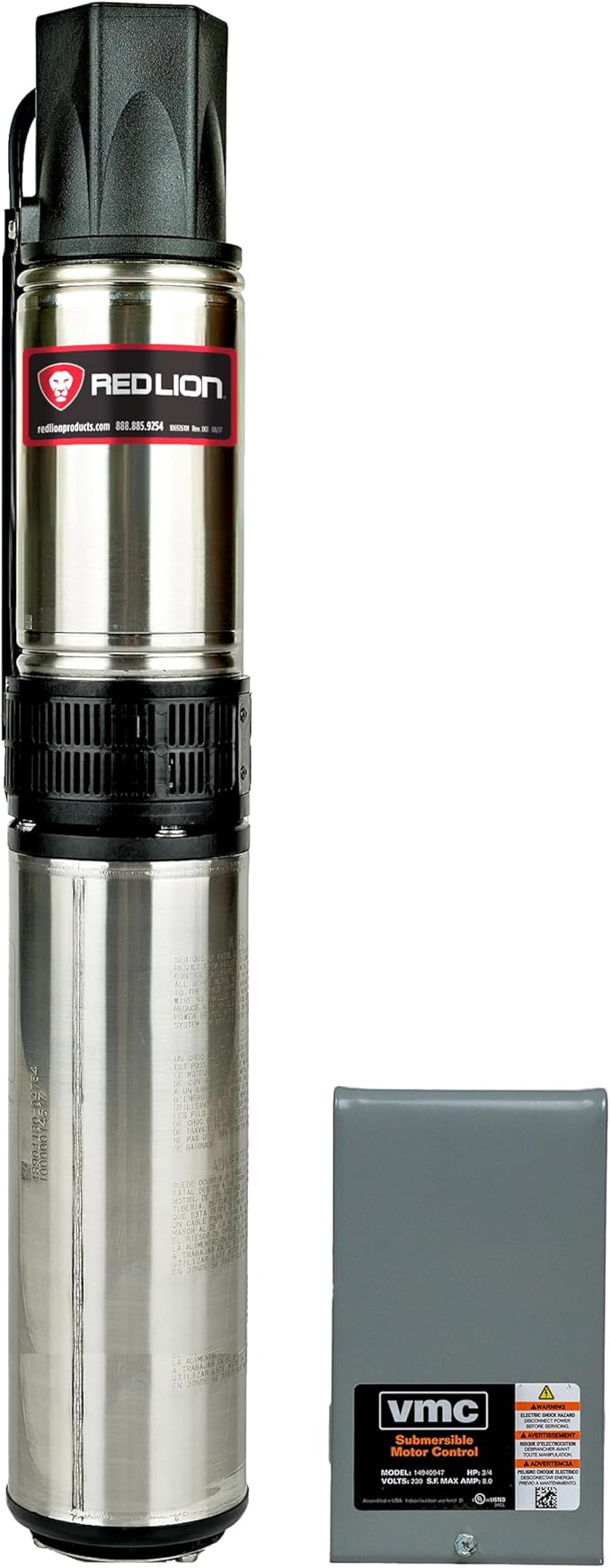

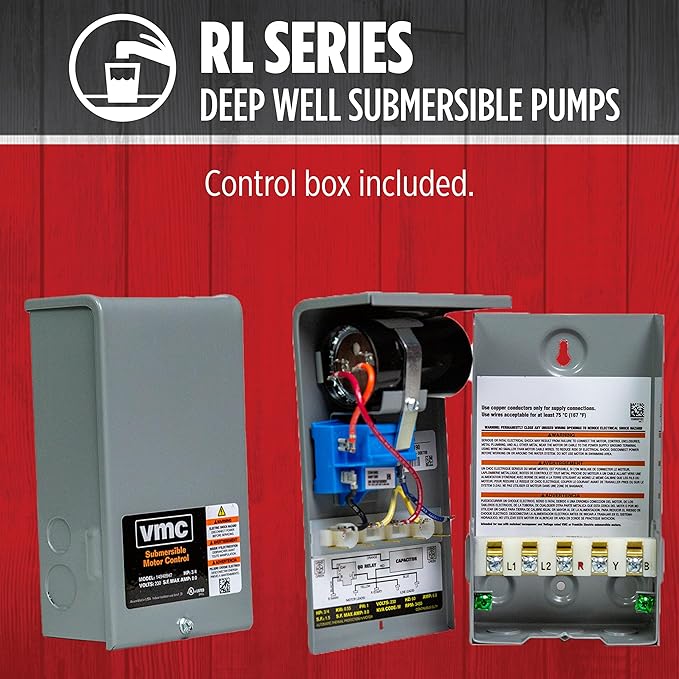

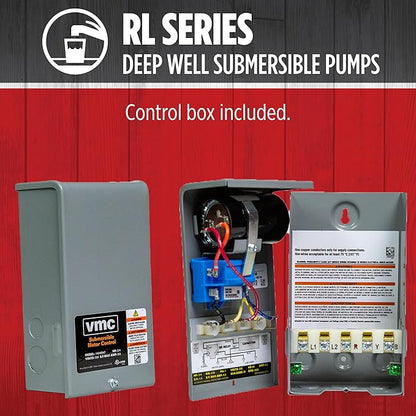

• CONTROL BOX INCLUDED: Red Lion/VMC branded 1 HP, 0.75 KW, 230 Volt, 60 Hz, 10.4 running Amps, single phase, enclosure 3 indoor/outdoor use rated, UL listed in Canada and the USA
• SPECIFICATIONS: 1 HP; 22 GPM; 3-Wire, 230 Volt, 10.4 running Amps; 1-1/4-inch FNPT discharge; stainless steel housing with thermoplastic discharge and motor bracket

Overview

• Brand : Red Lion
• Color : Steel
• Material : Stainless Steel, Thermoplastic
• Style : 1 HP, 22 GPM

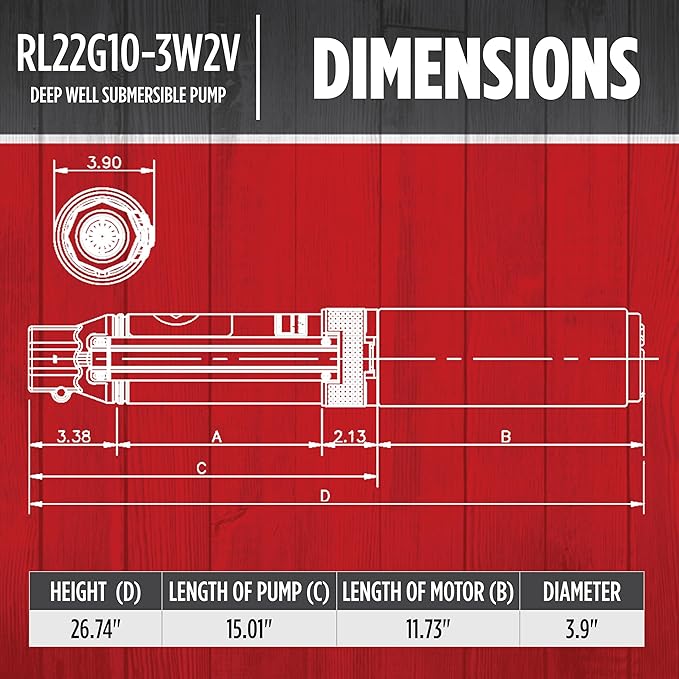

• Product Dimensions : 3.9'L x 3.9'W x 26.75'H
• Power Source : Corded Electric
• Item Weight : 30 Pounds
• Maximum Flow Rate : 22 Gallons Per Minute
• Maximum Lifting Height : 260 Feet
• Voltage : 230 Volts
