DIGITEN Water Flow Control LCD Display+G2"Flow Sensor Meter+12V Power

Brand: DIGITEN

Features:

• Controller will turn off the solenoid value automatically when flow reach to the setting value you desire
• It can work with various different flow sensor through adjust the K value.
• Display the REAL-TIME volume of liquid which passes per minute.
• The controller come with G2'flow meter and power.
• Easy to install and control .The flow sensor works for Android and PI system.

model number: DFC15F1608

Part Number: DFC15F1608

Details: FEATURES

Quantitative control
Controller will turn off the solenoid value automatically when flow reach to the setting value you desire
Monitor flow rate
Display the REAL-TIME volume of liquid which passes per minute
Work with all hall effect flow sensor
It can work various different flow sensor through adjust the K value
Volume unit
Display Liter or Gallon
Water meter
DFC15 can be used to measure the volume of water
Adjustable accuracy
Calibrate the accuracy through adjust the K parameter
Temperature monitor
Come with temperature sensor, it can measure liquid temperature.

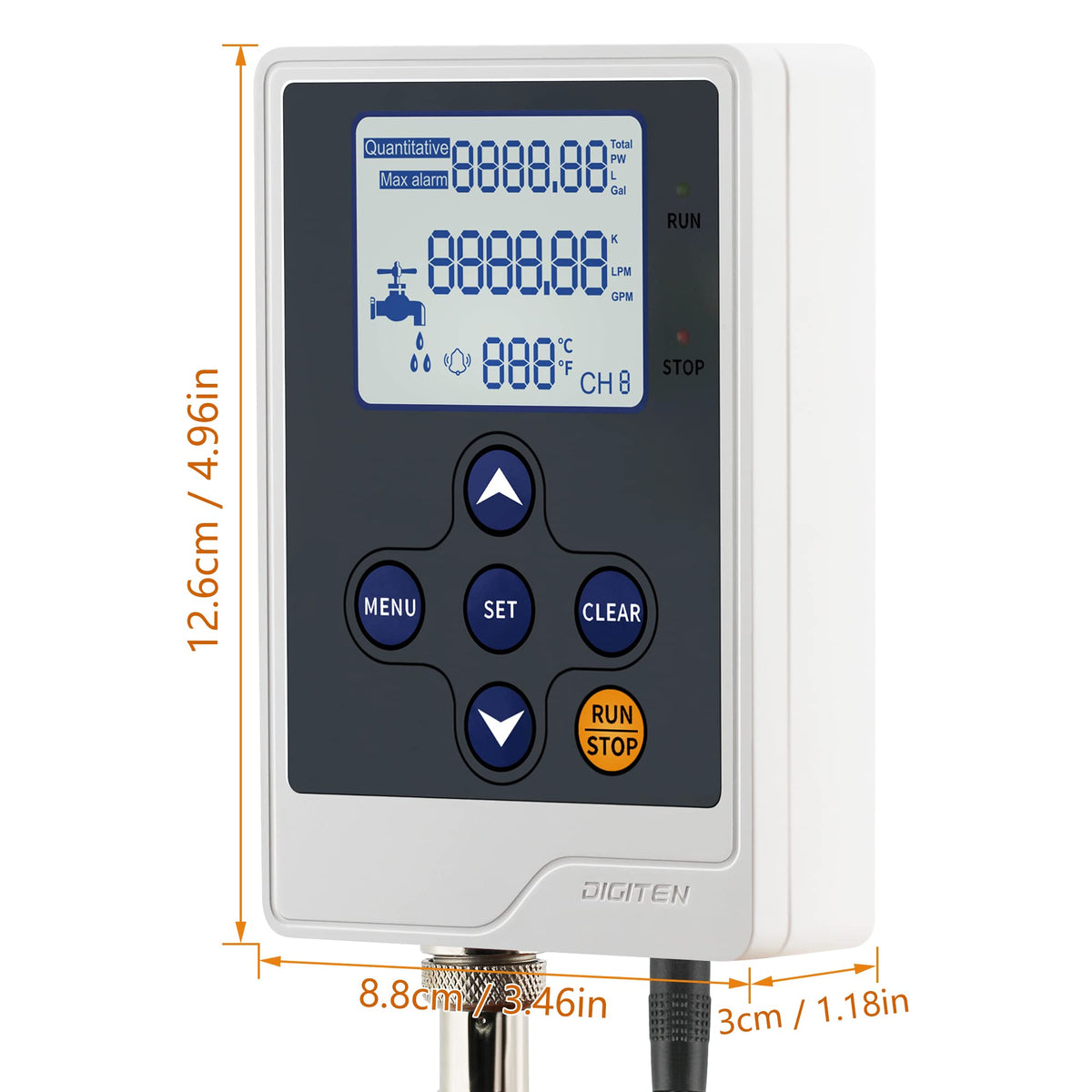

Easy-to-Read Front-Panel Liquid Crystal Display
Displays the flow total volume, flow rated and sensed temperature clearly; custom icons on the display indicate the controller working status at a glance

TECHNICAL SPECIFICATIONS
Controller Power Requirement: 12VDC
Power Adapter: Input: 100-240VAC, Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-120℃/32-212℉, NTC3950, Accuracy: ±1℃/±1℉ thread: M8
Max Total Volume : 999999 G/L
Quantitative Range: 0-9999 G/L
Flow range:10-200L/min)
Cable Length : 1m
Operation Environment: Temperature: 0-50℃/32-122℉ Relative Humidity: <85%

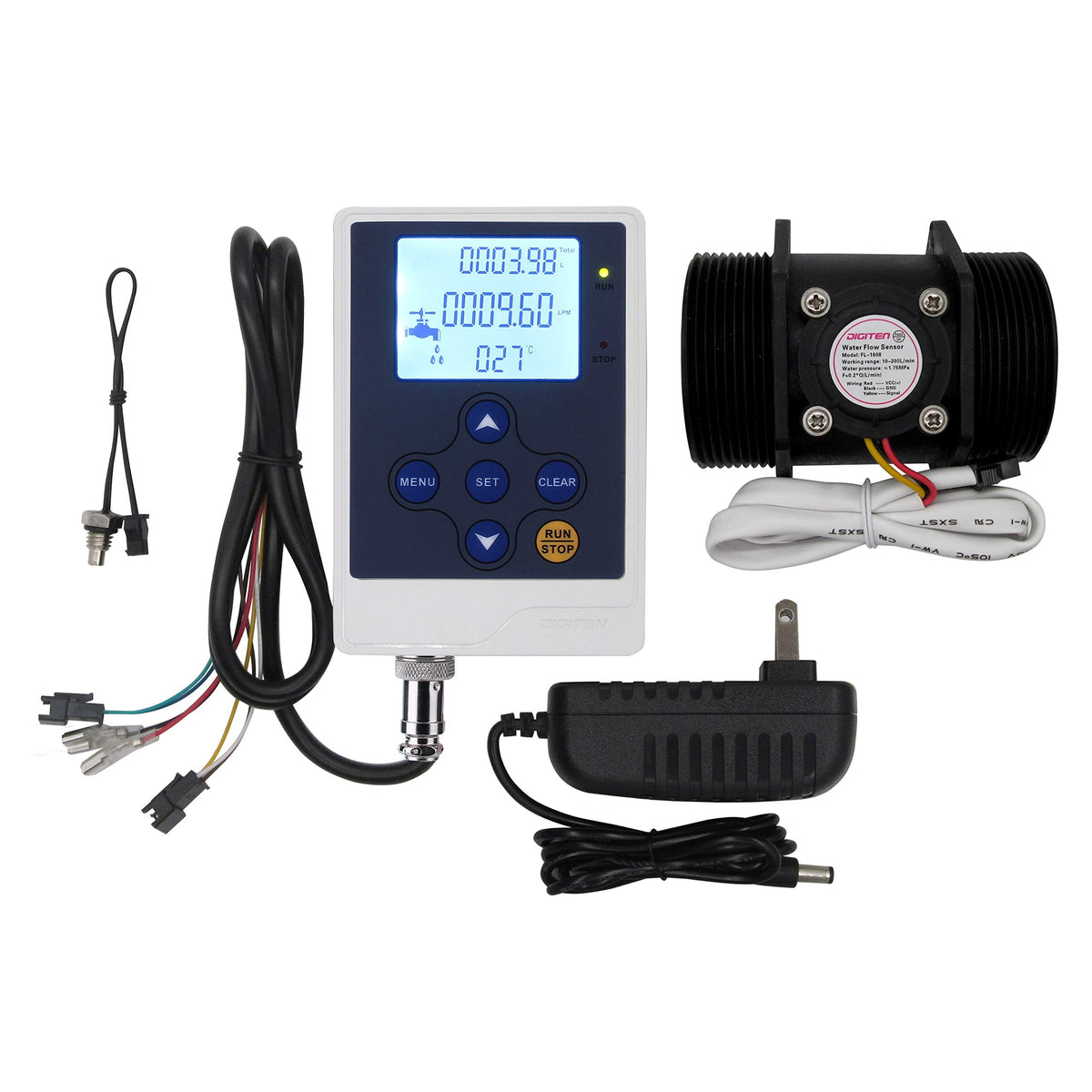

Packaging include

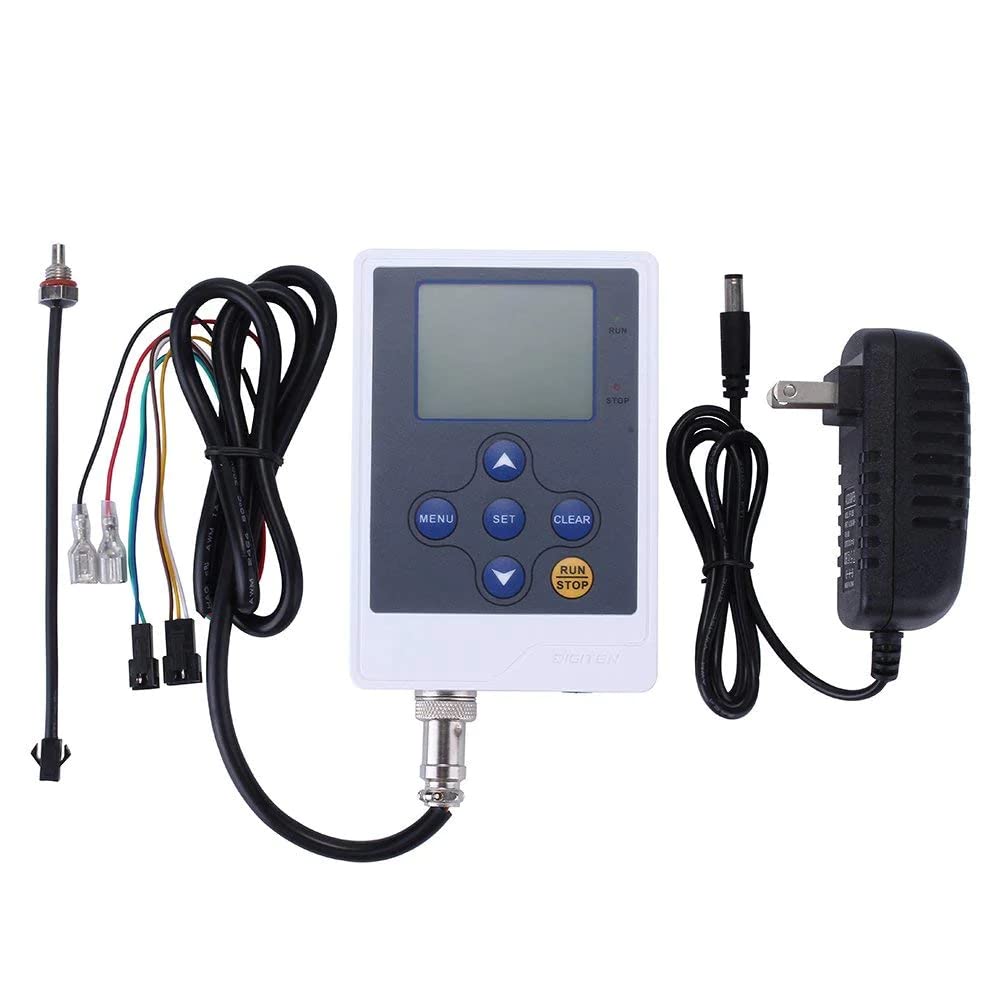

1 x DFC15 controller

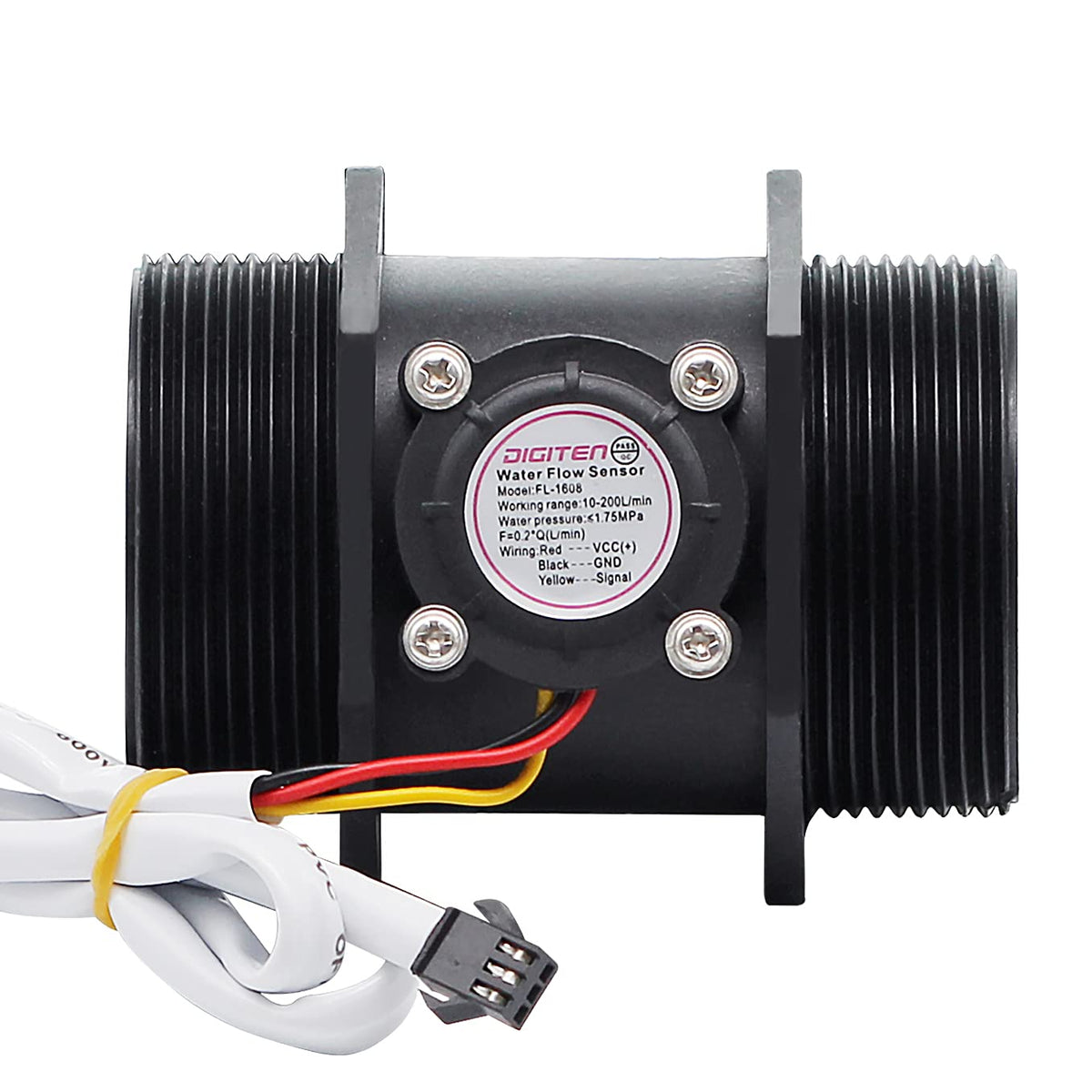

1 x G2' flow sensor

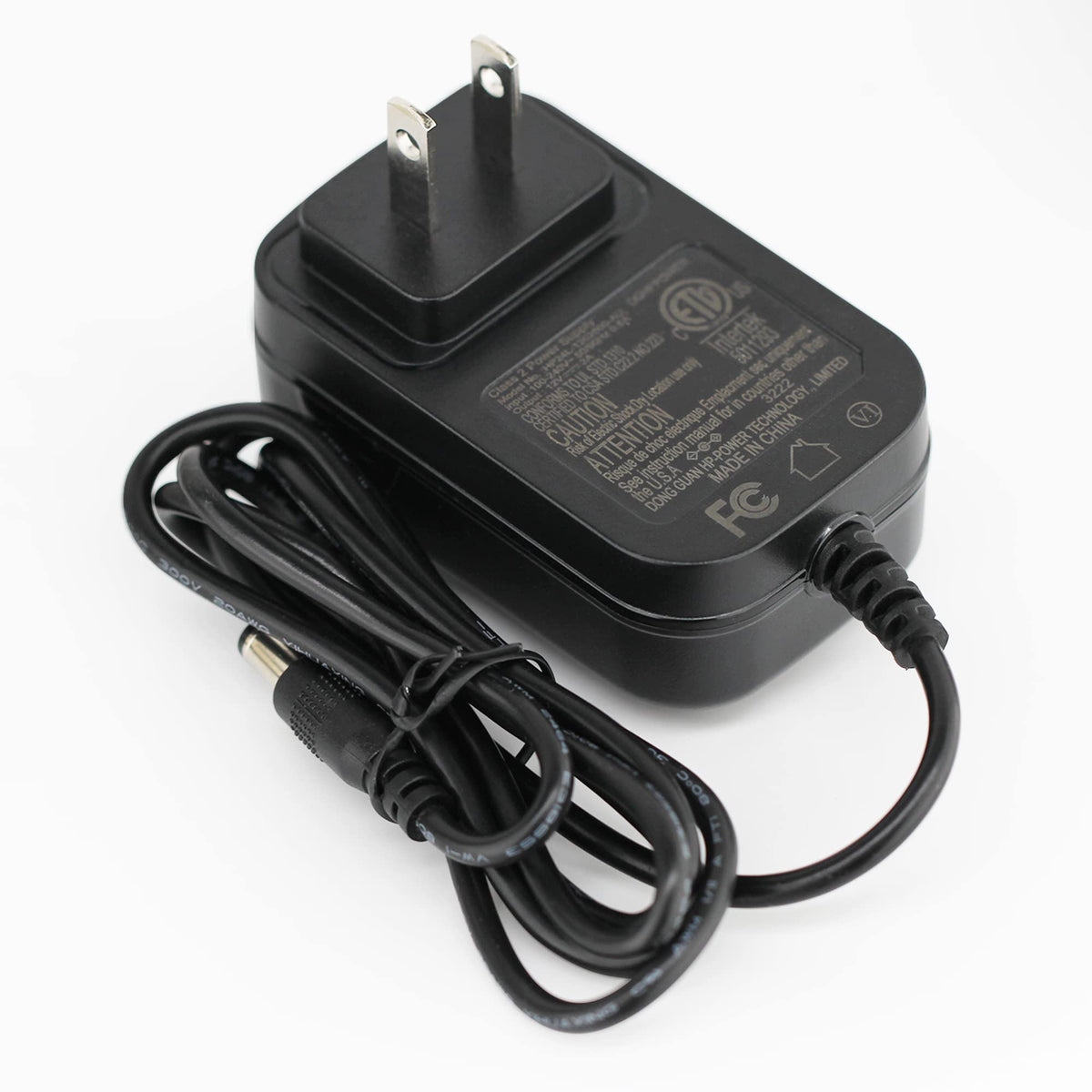

1 x AC100-240V power adapter
1 x Temperature sensor
1 x Instruction

Package Dimensions: 8.5 x 4.6 x 4.4 inches
